Specifications

• Barres are natural un-finished wood 1-1/2” or 1-3/4" diameter, sanded smooth – ideal for hands of all sizes.

• Our wood barre material is sourced in the USA.

• Brackets are made of heavy gauge steel and feature a powder coated finish

• Distance from mounting surface to center of barre is approximately 6”

• Bracket mount plate is 3-1/4” wide x 3-1/4” tall

• From center of 3-1/4” mount plate to the top of the barre is 3-3/8”

• Barres supports 100 lbs. per linear foot of static weight when properly installed.

Installation

• Longer length barre systems over 8' ship in multiple barre sections

• The number of brackets required depends on the length of the barre

• Barres are joined together inside the bracket collars for a continuous length look

• Our stock systems are configured for our recommended 4’ bracket spacing. In some cases, bringing the end brackets in a few inches to allow for some barre overhang may cause the bracket spacing to be less than 4’ on each end. You may need to purchase a longer barre system.

• The use of a backerboard securely mounted to the wall is recommended so that the brackets may be mounted at the required spacing.

• Brackets may be placed anywhere along the barre length; however, a bracket is required wherever barres are joined.

• Systems include all components and hardware needed for basic installation.

• Wood screws are provided for use underneath each bracket collar to secure the barres.

• When barres meet in a corner take 1’ off each barre dimension so barres do not touch in the corner.

• Allow at least 2’ per person or more depending on the activity.

• Ballet barres are typically mounted at 42” top of barre height, 42” and 32” for double barres.

• Barres for barre fitness are typically mounted between 36” and 40” top of barre height.

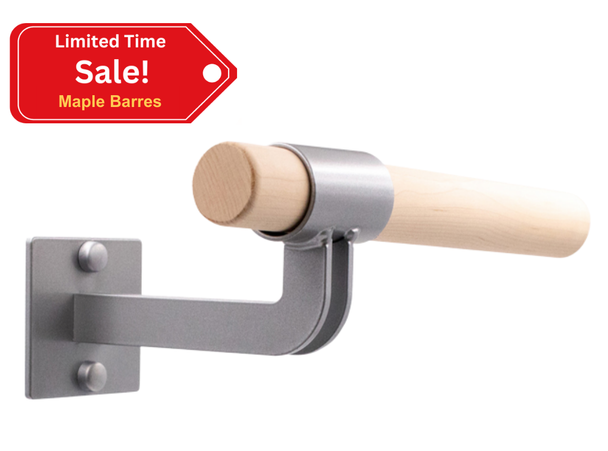

Geo Wall Mount Barre & Bracket Systems (Wood)
